Fun with Windows Aero Flip 3D

This whole thing started out because I was trying to get Logitech SetPoint to use the built-in Windows Aero Flip 3D task switcher rather than the built-in one (I like the Aero one better). SetPoint doesn’t have an option to use the built-in one, so I thought I might be able to use the “keystroke assignment” function. (I didn’t figure out how to get SetPoint working, but I learned a lot of other things.)

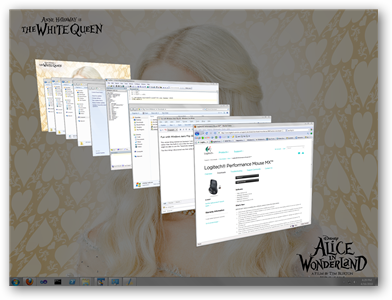

Windows Aero Flip 3D task switcher

The first thing I discovered was that while Winkey + Tab brings up Flip 3D, Winkey + CTRL + Tab will bring it up and let it sit there so you don’t have to hold the keys down anymore. That’s what I wanted to do with the task switcher.

I tried to assign Winkey + CTRL + Tab to the mouse button for task switching… but it turns out you can’t assign Windows key combos to mouse buttons through SetPoint. Fine.

A little more searching and I found that you can also bring up Flip 3D in a persistent fashion by running the following:

C:\Windows\System32\rundll32.exe DwmApi #105

That got me wondering if I could have the mouse button execute an arbitrary program.

You can’t. You can only assign a keystroke.

So can you have a global shortcut key that doesn’t involve the Windows key? Turns out you can. You can create a program shortcut on your desktop (or in your Start Menu hierarchy), assign it a shortcut key, and that becomes a global shortcut.

First, create a folder in your Start Menu. I created mine at C:\Users\tillig\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Tools. (That’s on Windows Server 2008/Windows 7 – you’ll need to adjust that for your Windows version appropriately.)

Set your shortcut to execute that rundll32.exe command line I gave you earlier.

Create a shortcut to rundll32.exe

Give your shortcut a nice name like “Aero Flip3D Task Switcher.”

Name your shortcut

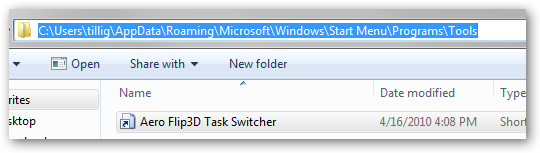

So now you should have a shortcut like this:

Shortcut in the Start Menu

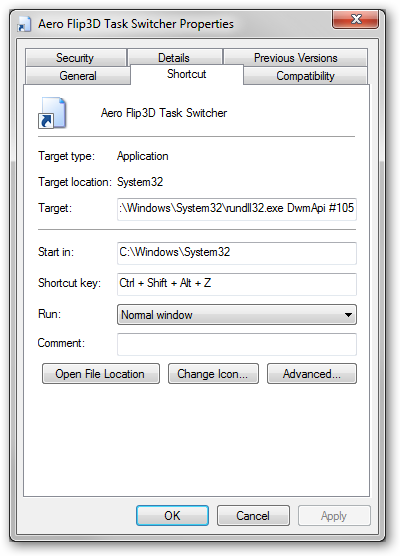

Now right-click that shortcut, select “Properties,” and on the Shortcut tab, click in the “Shortcut key” field and then press your shortcut key combination. Your shortcut key will show up in that box. Click OK to save the changes.

Enter your shortcut key in the shortcut properties

Now you should be able to use that new shortcut key combination to run the shortcut regardless of where you are. Nice!

Note that this order appears to be pretty important. I had to make sure the shortcut was in the Start Menu hierarchy before setting up the shortcut key or it wouldn’t work. The first time I tried it, I set the shortcut and shortcut key up in some other folder not on the desktop or in the Start Menu… and it didn’t work. If your shortcut key isn’t working, make sure you put the shortcut into the Start Menu and then set up the shortcut key.

Unfortunately, as it turns out, I still couldn’t use this to hook Logitech SetPoint up the way I wanted. I’m not sure why, but it just wouldn’t issue the key right, or maybe it wasn’t being issued the same way it does with the keyboard so Windows wasn’t handling the key.

Regardless, I learned a lot about some long-time Windows features and it looks like it could be useful in other situations. Hopefully it helps you, too.
