Fixing the Desktop Icon Drop Shadow Problem on Windows Server 2008

I develop on a daily basis on a Windows Server 2008 R2 machine. I do that because that's my target deployment environment and it's really helpful to be able to actually run the full product and debug right there on my "workstation." As such, I have the full "desktop experience" enabled - Aero, themes, the whole bit.

One problem I noticed was that the drop shadows under the icons on the desktop... they just don't stick around. I set my visual effects settings to "best appearance" and everything looks correct, but if I log out and back in, the setting remains checked but there's no drop shadow. That doesn't sound like a big deal except... well, I have a theme on the desktop that changes background images periodically and the icons get impossible to read without that shadow.

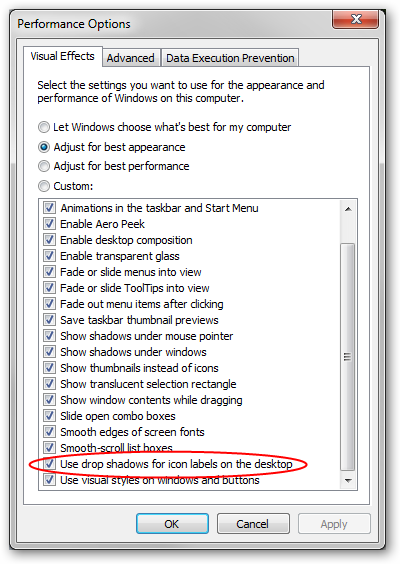

Visual Effects in Windows Server 2008

The only way I've found to get the drop shadows back is to go all the way into the control panel, select "Adjust for best performance," click "Apply," and then select "Adjust for best appearance" and click "Apply" again. Basically, reapply the settings.

I've tried just modifying the registry values corresponding to these settings, but those values don't get applied when they change. You actually have to inform the desktop engine somehow to "refresh." I couldn't figure out how to do that... so I went about it a different way.

Using AutoIt v3, I wrote a little script that automates this for you: it actually opens up the dialog and does the whole re-application of the settings. In the event you're in the same boat as me (both of you still reading), here's the script:

#RequireAdmin
ShellExecute("sysdm.cpl")
WinWaitActive("System Properties")
ControlCommand("System Properties", "", 12320, "TabRight", "")
ControlCommand("System Properties", "", 12320, "TabRight", "")
Send("!s")
WinWaitActive("Performance Options")
Send("!p!a")
WinWaitActive("Performance Options")
Send("!b{ENTER}")
WinActivate("System Properties")
ControlClick("System Properties", "", 1)

Running that will prompt you for admin credentials if you're not already an admin (because changing system settings requires admin privileges) and clicks all the right buttons to switch you to "best performance" and back to "best appearance."

posted on Wednesday, April 14, 2010 3:17 PM | Filed Under [ GeekSpeak Code Snippets ]

Comments

Gravatar # re: Fixing the Desktop Icon Drop Shadow Problem on Windows Server 2008
by PilotBob at 4/14/2010 4:19 PM
I'm not quite sure I understand. What is the advantage to this? What do you miss when developing on Windows 7?
Gravatar # re: Fixing the Desktop Icon Drop Shadow Problem on Windows Server 2008
by Travis Illig at 4/14/2010 4:32 PM
You don't understand why I develop on Windows Server 2008? Or you don't understand the phenomenon I'm seeing?

I dev on a Windows Server 2008 because you can't install, say, Active Directory Federation Services on Windows 7. I do a lot of server stuff, I dev on a server platform. Could I run a VM or a separate machine with all of that? Sure, but it gets to be a painful thing to hop back and forth between boxes and debug things...

...but really that's not what this blog post is about, anyway. It's about a problem I was seeing with the rendering of the Windows Server 2008 desktop experience.

If you don't understand the phenomenon I'm seeing, set your desktop to a light color; set your background image to something dark; and set your display to "Adjust for best performance." The icons render in dark text (because the desktop color is light) and can't be read (because the image is NOT light). This happens if you have a rotating background image. Having the drop shadow fixes all that.
